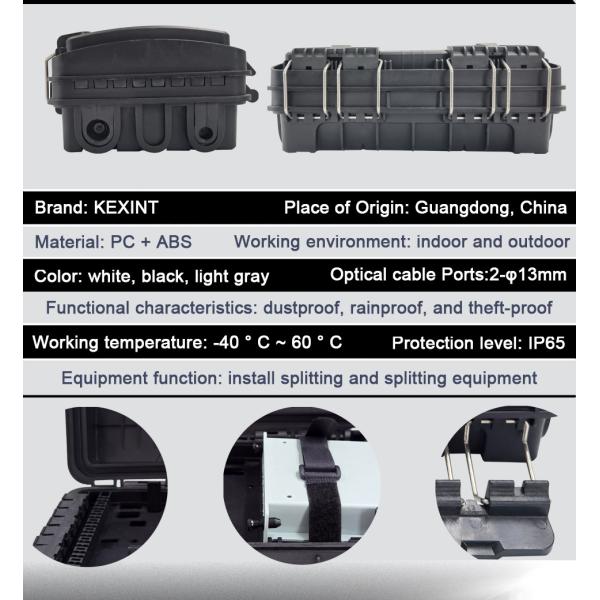

Outdoor Overhead FTTH 8 Cores Splicing Pipeline Optical Distribution Box
KXT-B-8JK Fiber Splitter Box provides a high density wall mounted or pole solution for next generation networks, which aims to provide and manage fiber splitters in a limited space in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to
install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.
Features:
1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
2. Anti-ultraviolet,anti- impact and waterproof function;
3. Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
4. Fiber optic cable can go in and out of the box without cut the cable.
Applications:
1. Wall mounting and pole mounting installtion
2. FTTH pre-installation and filed installation
3. 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Technical
1. Optical fiber radius of curvature: ≥40mm
2. Splice tray additional loss: ≤0.1dB
3. Temperature range: -40°C ~ +60°C
4. Anti side pressure: ≥2000N/10cm
5. Impact resistance: ≥20N.m
6. Protection class: IP65
Configuration
| Material | Size | Max Capacity | Nos of Adaptor | Weight | Color |
Strengthen
Polymer Plastic | A*B*C(mm)
285*180*90 | Splice Fibers
1x8 | PLC Splitter
1pcs of 1x8 | 16 pcs of SC | 1.2 kg | Black |
Packing, transportation and storage
This equipment packaging is moisture-proof and earthquake-proof. The accessories are packed first plastic
bags, then into the boxes with plastic bags for sealing. There are moisture-proof and earthquake direction signs
outside the boxes.
It can’t be inverted in the transport and be free from rolling when carrying. Please load carefully and
prevent the collision. You should prevent it from heavy rain before installation. The temperature in the
transport should be controlled between-35℃ to +55℃.
The excessive accumulation of goods should be stored on the cartons. The treasury should away from the
erosion of corrosive gas equipment and the temperature should be below 45℃ and higher than -5℃, and
relative temperature should not be high in long-term(generally less than 75%).
